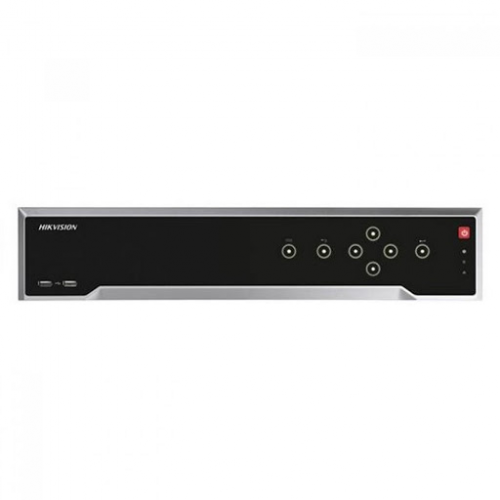

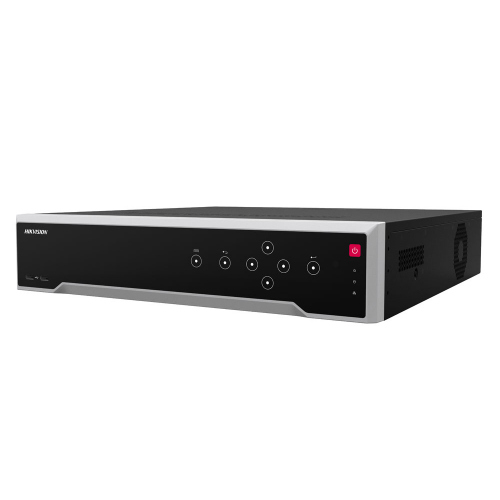

| Model | DS-8664NI-I8 |
|---|---|
| IP video input | 64-ch |
| Incoming bandwidth | 320Mbps |
| Outgoing bandwidth | 256Mpbs |
| VGA1/HDMI1 output resolution | HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz?VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA2/HDMI2 output resolution | HDMI2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz?VGA2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio output | 2-ch, RCA (Linear, 1 K ?) |
| Decoding format | H.265/H.264/MPEG4 |
| Recording resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/ QCIF |
| Synchronous playback | 16-ch |
| Capability | 4-ch@4K/16-ch@1080p |
| SATA | 8 SATA interfaces |
| eSATA | 1 eSATA interface |
| Capacity | 500GB/1TB/2TB/3TB/4TB/5TB/6TB |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k?) |
| Network interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Serial interface | RS-232; RS-485; Keyboard |
| USB interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm in/out | 16/4 |
| Power supply? | 100 to 240 VAC, 50 to 60 Hz |
| Consumption (without hard disk) | ? 35 W |
| Max. Power | 200 W |
| Working temperature | -10 to +55°C (14 to 131°F) |
| Working humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 2U chassis |
| Dimensions?(W × D × H)? | 445 × 470 ×90 mm ( 17.5”× 18.3” × 3.5”) |
| Weight?(without hard disks) | ?8Kg(17.6lb) |
|
