DONANIM ZELLİKLERİ

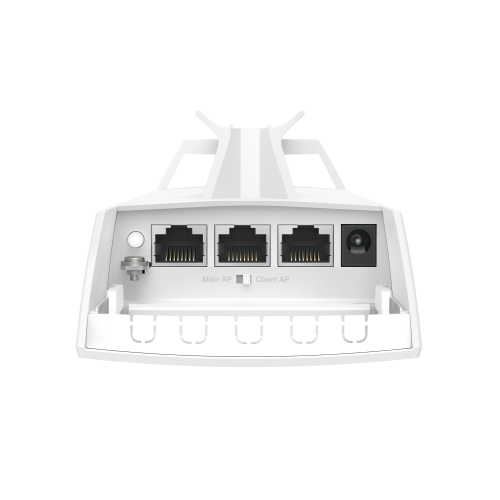

Arabirim	3x Gigabit Ethernet Ports
Buton	Reset
DIP Switch	Role Switch
G Kaynağı	12V DC / 802.3af PoE / 24V Passive PoE
G Tketimi	11.5W
Boyutlar ( W X D X H )	8.8 × 3.1 × 2.4 × in (224 × 79 × 60 mm)
Anten	Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 10.0 dBi Horizontal:60°, Vertical: 30°
Weatherproof Enclosure	IP65

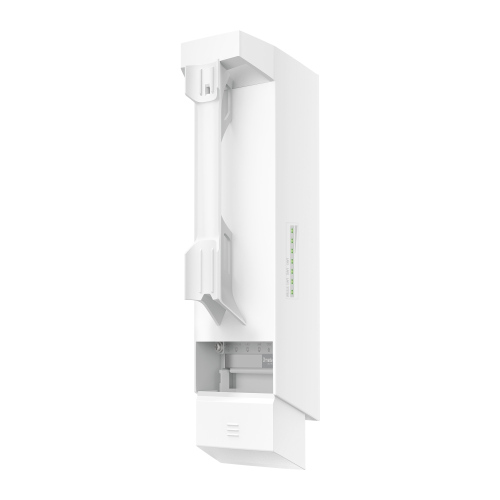

Montaj	Pole and wall mounting ( Pole accessories included)

KABLOSUZ ZELLİKLERİ
Coverage	1000m(3280ft)^*
Kablosuz Standartlar	IEEE 802.11 a/n/ac
Frekans	5 GHz
Bağlantı Hızı	5 GHz: Up to 867 Mbps^§
Kablosuz Fonksiyonlar	• MU-MIMO: 5G 2x2 MU-MIMO DL • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast
Kablosuz Gvenlik	• VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption
İletim Gc	• CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz, band3, EIRP) • FCC: <23dBm (5 GHz, band1) <25dBm (5 GHz, band4)

YNETİM
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada App
Cloud Access	Yes. Require the use of Omada Controllers.
Eposta Uyarı	Yes
LED Aık/Kapalı Kontrol	Yes
SNMP	Yes
SSH	Yes
Web-tabanlı Ynetim	Yes
Zero-Touch Provisioning	Yes

DİĞERLERİ
Sertifika	CE, FCC, RoHS

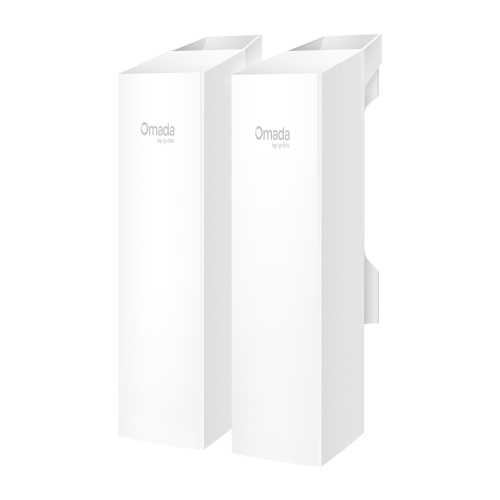

Paket İeriği	• EAP211-Bridge KIT • Installation Guide • Mounting Kit
Lightning Protection	• Air discharge: ±8kV • Contact discharge: ±4kV • Common mode 10/700: ±6kV
Ortam	• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
