DONANIM ZELLİKLERİ
Arabirim	1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Buton	Reset
G Kaynağı	• 802.3at PoE • 12V DC / 1.2 A (Power Adapter IS NOT included) • 48V Passive PoE
G Tketimi	• EU: 13.2 W • US: 14.6 W
Boyutlar ( W X D X H )	6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Anten	Internal Omni • 2.4 GHz: 2× 3 dBi • 5 GHz: 3× 5 dBi (One Auxiliary Antenna Included)
Bluetooth	V5.2

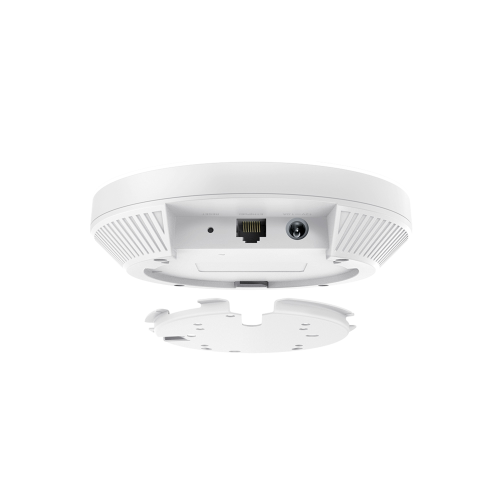

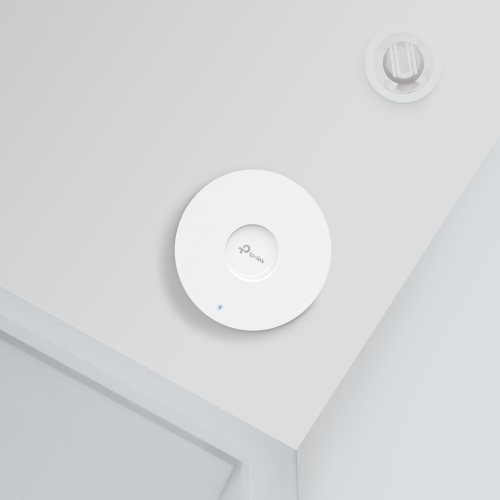

Montaj	• Ceiling /Wall Mounting (Kits included) • Junction Box Mounting

KABLOSUZ ZELLİKLERİ
Coverage	140㎡(1500 ft²)^***
Concurrent Clients	250+^**
Kablosuz Standartlar	IEEE 802.11ax/ac/n/g/b/a
Frekans	2.4 GHz and 5 GHz
Bağlantı Hızı	• 5 GHz: Up to 2402 Mbps^† • 2.4 GHz: Up to 574 Mbps^†
Kablosuz Fonksiyonlar	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MIMO(2.4GHz:22 SU/MU-MIMO; 5GHz:22 SU/MU-MIMO) • HE160 (160 MHz Bandwidth)^‡ • Seamless Roaming(802.11k/v/r)^§ • Omada Mesh^§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Kablosuz Gvenlik	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
İletim Gc	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <27 dBm(5 GHz, Band3, EIRP) • FCC: <24 dBm (2.4 GHz) <25 dBm (5 GHz)

YNETİM
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Eposta Uyarı	Yes
LED Aık/Kapalı Kontrol	Yes
MAC Erişim Kontrol Ynetimi	Yes
SNMP	v1, v2c, v3
Yerel/Uzak Sistem Gnlğ Kaydı	Local/Remote Syslog
SSH	Yes
Web-tabanlı Ynetim	HTTP/HTTPS
L3 Ynetim	Yes
Multi-site Ynetim	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

DİĞERLERİ
Sertifika	CE, FCC, RoHS
Paket İeriği	• EAP653 • Ceiling/Wall Mounting Kits • Installation Guide Note: DC adapter is not included in the package, and is sold separately.
Sistem Gereksinimleri	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Ortam	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
