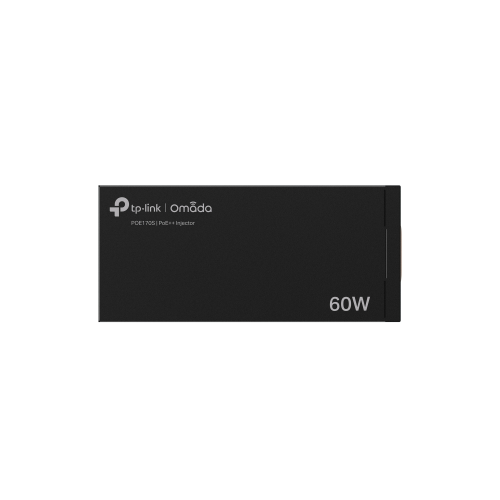

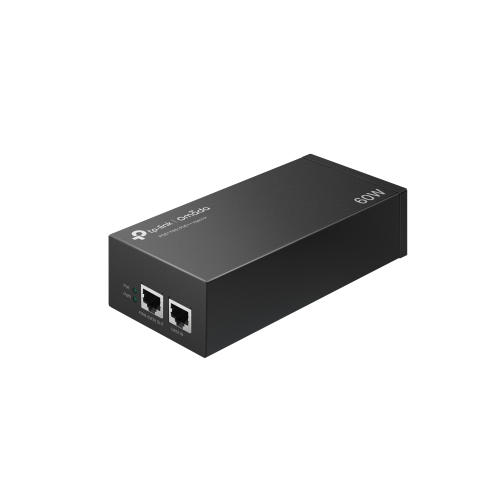

Omada PoE++ Injector

Two Gigabit ports
Complies with IEEE802.3af/at/bt (type 3) standards, supplies up to 60 W
Transmitting data and power to PoE devices via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design
Plug & Play installation
Durable metal casing

DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
Arabirim	• 1× 10/100/1000Mbps RJ45 data-in port • 1× 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W) • 1× AC socket
Ağ Medyası	• 10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m)
Güç Tüketimi	• Input: 100-240 V, 50/60 Hz, 1.6A • Output: Auto-determine the necessary power requirements (max. 60 W)
Temel Fonksiyon	• Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play
LED	• Power • PoE
Boyutlar ( W X D X H )	6.1×2.8×1.7 in (155×70×42 mm)

GENEL
Material	Metal Casing

DİĞERLERİ
Sertifika	FCC, CE, RoHS

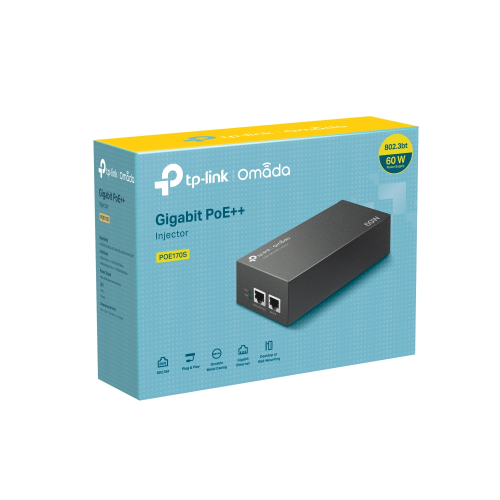

Paket İçeriği	• Omada PoE++ Injector POE170S • Installation Guide • Power Cord • RJ45 Cable
Ortam	• Operating Temperature: 0°C to 45°C (32°F to 113°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing
