DONANIM ÖZELLİKLERİ
Arabirim	• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports) • AUTO Negotiation • AUTO MDI/MDIX
Ağ Medyası	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı	Fanless
Kurulum	• Desktop • Wall Mounting
Güç Kaynağı	External Power Adapter (Output: 53.5VDC / 1.31A)
PoE Portları (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8, up to 30 W PoE output per port • Power Supply: 63 W
LED Göstergesi	• Power • Link/Act • PoE Status • PoE MAX
Boyutlar ( W X D X H )	6.7×3.9×1.1 in (171×98×27 mm)
Maks. Güç Tüketimi	• 3.67 W (220 V/50 Hz no PD connected) • 73.24 W (220 V/50 Hz with 63 W PD connected)
Max Heat Dissipation	• 12.48 BTU/h (220 V/50 Hz no PD connected) • 249 BTU/h (220 V/50 Hz with 63 W PD connected)

YAZILIM ÖZELLİKLERİ

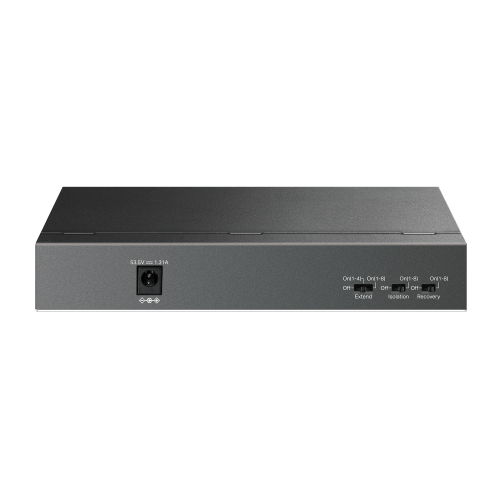

Gelişmiş Özellikler	• Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology
Transfer Metodu	Store and Forward

DİĞERLERİ
Sertifika	CE, FCC, RoHS
Paket İçeriği	• LS109P • Power Adapter • Installation Guide • Rubber Feet
Ortam	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
