DONANIM ÖZELLİKLERİ

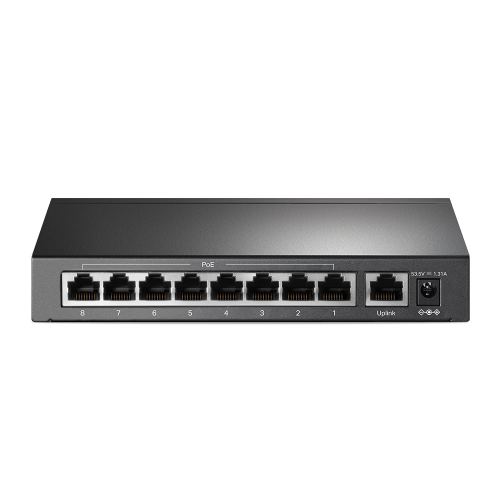

Arabirim	• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX
Ağ Medyası	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı	Fanless
Fiziksel Güvenlik Kilidi	Yes
Harici Güç Kaynağı	External Power Adapter (Output: 53.5VDC / 1.31A)
Paket Yönlendirme Hızı	1.3392 Mpps

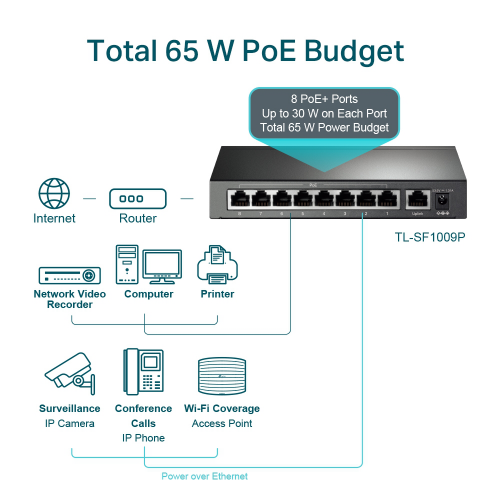

PoE Portları (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W
MAC Adres Tablosu	2K
Jumbo Frame	2 KB
Switching Kapasitesi	1.8 Gbps
Boyutlar ( W X D X H )	6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Maks. Güç Tüketimi	• 3.6 (220/50 Hz. no PD connected) • 77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation	• 12.28 BTU/h (no PD connected) • 262.84 BTU/h (with 65 W PD connected)

YAZILIM ÖZELLİKLERİ
İletim Metodu	Store-And-Forward

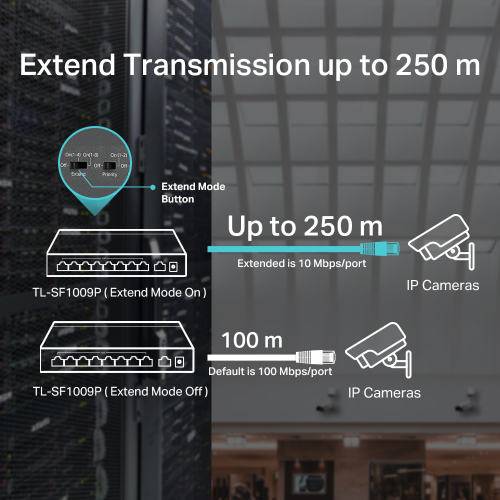

Gelişmiş Fonksiyonlar	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

DİĞERLERİ
Sertifika	FCC, CE, RoHS
Paket İçeriği	• TL-SF1009P • Power Adapter • Installation Guide
Ortam	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
