DONANIM ÖZELLİKLERİ

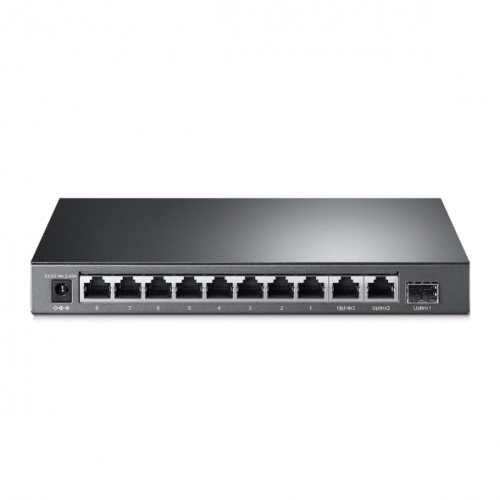

Arabirim	• 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port • AUTO Negotiation • AUTO MDI/MDIX
Ağ Medyası	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı	Fanless
Fiziksel Güvenlik Kilidi	Yes
Harici Güç Kaynağı	External Power Adapter (Output: 53.5VDC / 2.43A)
Paket Yönlendirme Hızı	5.6544 Mpps
PoE Portları (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 124 W
MAC Adres Tablosu	2K
Jumbo Frame	16 KB
Switching Kapasitesi	7.6 Gbps
Boyutlar ( W X D X H )	8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Maks. Güç Tüketimi	• 5.95 W (220/50 Hz. no PD connected) • 140.92 W (220/50 Hz. with 124 W PD connected)
Max Heat Dissipation	• 20.29 BTU/h (no PD connected) • 480.54 BTU/h (220/50 Hz. with 124 W PD connected)

YAZILIM ÖZELLİKLERİ
İletim Metodu	Store-And-Forward
Gelişmiş Fonksiyonlar	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

DİĞERLERİ
Sertifika	FCC, CE, RoHS
Paket İçeriği	• TL-SL1311MP • Power Adapter • Installation Guide
Ortam	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
