- Standard
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3 Nway auto-negotiation
- IEEE 802.3x full duplex operation and flow control
- IEEE 802.3az Energy Efficient Ethernet
- Performance
- Data transfer rate (half duplex/full duplex):
- Ethernet: 10/20 Mbps
- Fast Ethernet: 100/200 Mbps
- MAC address table: 1 K
- Memory buffer: 56 KB
- Switching fabric (non-blocking): 1.6 Gbps
- Features
- Auto-MDI/MDIX in all ports
- Transmission method: Store-and-forward architecture
- Port-based QoS support
- Interface

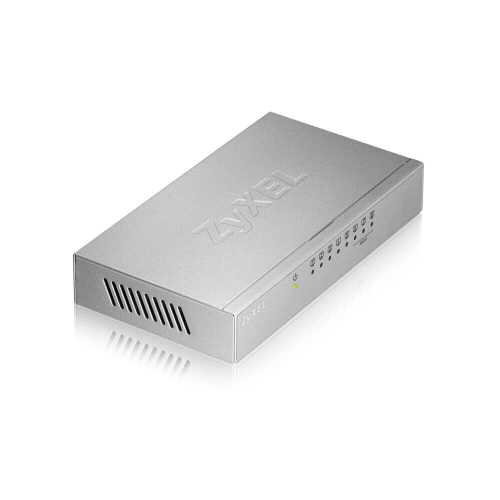

- Eight 10/100 Mbps Ethernet ports
- QoS Ports
- Three high-priority QoS ports
- LED Indicator
- PWR: Power
- Per port: Link/Activity
- Power Supply
- Input: 100 to 240 V AC, 50/60 Hz
- Output: 5 V DC, 1 A
- Power consumption (DC side): 1.52 watt max.
- Item dimensions (WxDxH): 155 x 85 x 26 mm (6.1" x 3.3" x 1.0")
- Item weight: 304 g (0.67 lb.)
- Packing dimensions (WxDxH): 161 x 90 x 95 mm (6.3" x 3.5" x 3.7")
- Packing weight: 477.5 g (1.05 lb.)
- Operating Environment
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10% to 90% (Non-condensing)
- Storage Environment
- Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 10% to 95% (Non-condensing)
- EMC: CE, EAC, FCC, BSMI Class B
- Ethernet switch
- Power adapter
- User’s guide
